Roman Ballista Plans
Build a Working Model Ballista
 Roman
Ballista Plans

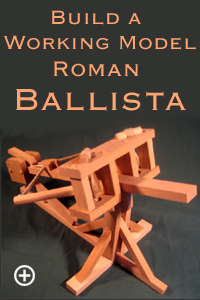

Build a Working Model Ballista with these easy to follow Ballista Plans
and Instructions. Once complete, this Stone Throwing Ballista is
2 feet long and will throw a scale projectile up to 90 feet.
Professional Design
Professionally engineered, this Roman Ballista design allows you to
vary the elevation and bow strength for range and trajectory adjustment.
Fire with a soft projectile for indoor use, or a solid one for long range
outdoors.
Great Project
Resembling a crossbow, the ballista derives its power from skeins of
twisted cord, just like a catapult. The Stone Throwing Ballista is perfect
for demonstrating ancient Roman warfare and technology as well as the physics
of torsion, ballistics and projectile motion. Ballistas make great science
and history projects.
Easy to Build
Like all TrebuchetStore.com plans, the Ballista uses common, inexpensive
and easy to find building materials, available at your local hardware store
or home center. Basic woodworking skills and tools are required, but the
straightforward design requires no complicated layout or joinery.
TrebuchetStore.com Ballista Plans come complete with:
-
Parts Shopping List
-
Measured Drawings and Dimensions for all parts
-
Assembly Drawings
-
Step by step Assembly Instructions
-
Step by step Firing and Tuning Instructions
All the information you need to complete your project quickly and easily.
Want to know how to build a ballista ? TrebuchetStore.com Ballista Plans
and Instructions take the mystery out of Ballista design and construction.
|
Please click on the images below for additional Ballista
plan views.

|
|
Save up to 50% with Multi-Plan Deals
|
| 2 Plans $19.95 FREE Shipping
- Save Over 30%
U.S. Orders Only |
|
| Do It Yourself Working Model Trebuchet Kit |
|
Trebuchet
Kit
Item #TK
|
$75.00
Free
Shipping
U.S. Orders Only |
|
The trebuchet kit includes fully precut and drilled
frame parts, pins and axles, sling cord and sewn pouch, projectiles and
fully illustrated assembly and firing instructions.
Unlike the flimsy, snap together plywood trebuchet
kits, this all hardwood trebuchet kit does not require additional cutting,
trimming or shaping.
This DIY Trebuchet Kit requires only white carpenter's
glue and a few bar clamps (not included) to assemble.
Read More
> |
| Fully Assembled Working Model Trebuchet |
|
daVinci Trebuchet
Item # T4
|
$299.00
Free
Shipping
U.S. Orders Only
|
|
Inspired by the great war machines and siege catapults of Leonardo da Vinci
, this all Red Oak
hardwood trebuchet features
an open counterweight cabinet for range and trajectory adjustment.
Fire with an empty counterweight for indoor use, or add weight (nuts,
bolts, scrap lead, iron or steel, sand, or small rocks not included) for
increased range.
Individually crafted from cabinet-grade red oak, the da Vinci Trebuchet
stands 14 inches tall in the cocked position, 24 inches tall in the fired
position and will hurl a projectile up to 60 feet. Includes six projectiles
and fully illustrated instructions.
Read More > |
